NRG Systems" T60 Temperature Sensor with 4.6m Cable
is an integrated circuit temperature sensor that provides a high level voltage output signal. This sensor is ideal for collecting temperature data for energy density calculations and monitoring air temperature at remote sites.

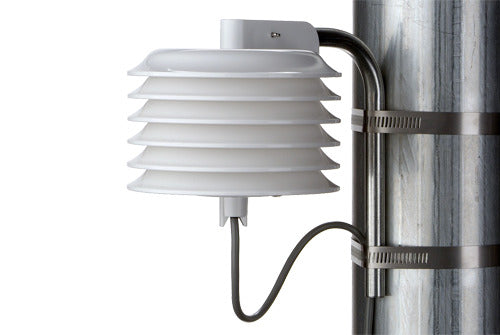

The T60 temperature sensor includes an internal reference, amplifiers, and linearization enclosed in a six-plate UV-stabilized radiation shield. This temperature sensor is also an excellent addition for sites where icing may be a possibility.
The universal mounting assembly mounts quickly to any pipe or tower.
We can offer the same sensor with a traceable calibration certificate
Sensor type integrated circuit temperature sensor with six plate radiation shield
Sensor range -40 °C to 52.5 °C (-40 °F to 126.5 °F)
Signal type linear analog voltage
Transfer function Temp = (Voltage x 55.55) - 86.38 °C / [Temp = (Voltage x 100) - 123.5 °F]
Accuracy: offset is +/- 0.8 °C (1.4 °F) maximum / nonlinearity is +/- 0.33 °C (+/- 0.6 °F) maximum / total error +/- 1.1 °C (2 °F) maximum
Output signal range 0 V to 2.5 V DC
Supply voltage 4 V to 35 V DC
Operating humidity range 0 to 100% RH
This sensor is compatible with our GSM systems
